ALLPAX GASKET CUTTER SYSTEMS

Allpax Gasket Cutter Systems has been providing quality gasket cutters to a wide range of industrial markets for over 75 years. In addition to the original Allpax compass style extension gasket cutter, Allpax also offers hollow punch tools, packing hooks and a complete line of replacement parts.

Hefty brass cutting head slides easily over a variety of gasket materials.
Modular extension design allows you to quickly adjust your cutting size from 1/4" up to 61" in diameter.
Special cutting blades are held securely, ensuring consistent and repetitive cuts in material up to 3/4" thick.
Choose from six convenient kits to accommodate your cutting requirements.
Also available in metric units.

Hollow Punch Tools

Dead Blow Hammers

Packing Hooks

The only hollow punch tool on the market with dual cutting heads. Also available in metric units.

Heavy shot-loaded head reduces rebound and absorbs impact.

The perfect labour savings tools form removing packings from stuffed boxes.

Quicklinks Extension Gasket Cutters Metric Extension Gasket Cutters Hollow Punch Tools Metric Hollow Punch Tools Dead Blow Hammers Packing Hooks
EXTENSION GASKET CUTTERS
	Gasket Cutter Kit No. 1 - 100K13 Cuts 1/4" I.D. to 13" in Diameter Parts included: Cutter Block & Head Assembly Cutter Head Screws (2) Gasket Cutter Blades (6) Pivot Post Knurled Nuts (2) Fiber Washers (2) 1/2" Short Center Pin 3/4" Long Center Pin 18" Cutting Board Cutting Knob for Small Diameters Post with Offset Pin Piercing Tool Hex Key

	Gasket Cutter Kit No. 2 - 100K25 Cuts 1/4" to 25" in Diameter Parts included: Cutter Block & Head Assembly Cutter Head Screws (2) Gasket Cutter Blades (6) Pivot Post Knurled Nuts (3) Fiber Washers (3) 1/2" Short Center Pin 3/4" Long Center Pin Extension Bar 13" to 25" 18" Cutting Board Cutting Knob for Small Diameters Post with Offset Pin Piercing Tool Hex Key

	Gasket Cutter Kit No. 3 - 100K37 Cuts 1/4" to 37" in Diameter Parts included: Cutter Block & Head Assembly Cutter Head Screws (2) Gasket Cutter Blades (6) Pivot Post Knurled Nuts (3) Knurled Nuts for Extension Bar Fiber Washers (3) 1/2" Short Center Pin 3/4" Long Center Pin Extension Bar 13" to 25" Extension Bar over 25" 18" Cutting Board Cutting Knob for Small Diameters Post with Offset Pin Piercing Tool Hex Key

	Gasket Cutter Kit No. 4 - 100K49 Cuts 1/4" to 49" in Diameter Parts included: Cutter Block & Head Assembly Cutter Head Screws (2) Gasket Cutter Blades (6) Pivot Post Pivot Post for Extension Bars Knurled Nuts (3) Knurled Nuts for Extension Bar (2) Fiber Washers (3) 1/2" Short Center Pin 3/4" Long Center Pin Extension Bar 13" to 25" Extension Bar over 25" (2) 18" Cutting Board Cutting Knob for Small Diameters Post with Offset Pin Piercing Tool Hex Key

	Gasket Cutter Kit No. 5 - 100K61 Cuts 1/4" to 61" in Diameter Parts included: Cutter Block & Head Assembly Cutter Head Screws (2) Gasket Cutter Blades (6) Pivot Post Pivot Post for Extension Bars Knurled Nuts (3) Knurled Nuts for Extension Bar (3) Fiber Washers (3) 1/2" Short Center Pin 3/4" Long Center Pin Extension Bar 13" to 25" Extension Bar over 25" (3) 18" Cutting Board Cutting Knob for Small Diameters Post with Offset Pin Piercing Tool Hex Key

	Gasket Cutter Kit No. 6 - 100U13 Cuts 1/4" to 13" in Diameter Parts included: Same parts listed in Gasket Cutter Kit No. 1 but without the cutting board.
METRIC EXTENSION GASKET CUTTERS
	Gasket Cutter Kit No. 1 - 100KM330 Cuts 6mm to 330mm in Diameter Parts included: Cutter Block & Head Assembly Cutter Head Screws (2) Gasket Cutter Blades (6) Pivot Post Knurled Nuts (2) Fiber Washers (2) 13mm Short Center Pin 19mm Long Center Pin 457mm Cutting Board Cutting Knob for Small Diameters Post with Offset Pin Piercing Tool Hex Key

	Gasket Cutter Kit No. 2 - 100KM635 Cuts 6mm to 635mm in Diameter Parts included: Cutter Block & Head Assembly Cutter Head Screws (2) Gasket Cutter Blades (6) Pivot Post Knurled Nuts (3) Fiber Washers (3) 13mm Short Center Pin 19mm Long Center Pin Extension Bar 330mm to 635mm 457mm Cutting Board Cutting Knob for Small Diameters Post with Offset Pin Piercing Tool Hex Key

	Gasket Cutter Kit No. 3 - 100KM940 Cuts 6mm to 940mm in Diameter Parts included: Cutter Block & Head Assembly Cutter Head Screws (2) Gasket Cutter Blades (6) Pivot Post Knurled Nuts (3) Knurled Nuts for Extension Bar Fiber Washers (3) 13mm Short Center Pin 19mm Long Center Pin Extension Bar 330mm to 635mm Extension Bar over 635mm 457mm Cutting Board Cutting Knob for Small Diameters Post with Offset Pin Piercing Tool Hex Key

	Gasket Cutter Kit No. 4 - 100KM1245 Cuts 6mm to 1245mm in Diameter Parts included: Cutter Block & Head Assembly Cutter Head Screws (2) Gasket Cutter Blades (6) Pivot Post Pivot Post for Extension Bars Knurled Nuts (3) Knurled Nuts for Extension Bar (2) Fiber Washers (3) 13mm Short Center Pin 19mm Long Center Pin Extension Bar 330mm to 635mm Extension Bar over 635mm (2) 457mm Cutting Board Cutting Knob for Small Diameters Post with Offset Pin Piercing Tool Hex Key

	Gasket Cutter Kit No. 5 - 100KM1550 Cuts 6mm to 1550mm in Diameter Parts included: Cutter Block & Head Assembly Cutter Head Screws (2) Gasket Cutter Blades (6) Pivot Post Pivot Post for Extension Bars Knurled Nuts (3) Knurled Nuts for Extension Bar (3) Fiber Washers (3) 13mm Short Center Pin 19mm Long Center Pin Extension Bar 330mm to 635mm Extension Bar over 635mm (3) 457mm Cutting Board Cutting Knob for Small Diameters Post with Offset Pin Piercing Tool Hex Key

	Gasket Cutter Kit No. 6 - 100UM330 Cuts 6mm to 330mm in Diameter Parts included: Same parts listed in Gasket Cutter Kit No. 1 but without the cutting board.
HOLLOW PUNCH TOOLS
11 Piece Hollow Punch Tool Kit - 100KM11 10 Punch Sizes: 1/8", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 3/4" Case Dimensions: 5 - 1/2" x 5" x 1 - 1/2" Weight: 1.3lbs

16 Piece Hollow Punch Tool Kit - 100KM16 15 Punch Sizes: 1/8", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 3/4", 7/8, 1", 1 - 1/16", 1 - 1/8", 1 - 3/16" Case Dimensions: 8 - 3/4" x 6 - 1/4" x 1 - 1/2" Weight: 2.5lbs

27 Piece Hollow Punch Tool Kit - 100K27 25 Punch Sizes: 1/8", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 3/4", 7/8, 1", 1 - 1/16", 1 - 1/8", 1 - 3/16", 1 - 1/4, 1 - 5/16, 1 - 3/8", 1 - 7/16", 1 - 1/2", 1 - 5/8", 1 - 11/16", 1 - 3/4", 1 - 7/8", 2" Case Dimensions: 12 - 1/2" x 9 - 3/4" x 2" Weight: 6lbs
METRIC HOLLOW PUNCH TOOLS
11 Piece Hollow Punch Tool Kit - 100KM11 10 Punch Sizes: 3mm, 4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm Case Dimensions: 138mm x 127mm x 25mm Weight: 1.3lbs

16 Piece Hollow Punch Tool Kit - 100KM16 15 Punch Sizes: 3mm, 4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 24mm, 26mm, 28mm, 30mm Case Dimensions: 222mm x 159mm x 38mm Weight: 2.5lbs

31 Piece Hollow Punch Tool Kit- 100KM31 29 Punch Sizes: 2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 24mm, 26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 42mm, 44mm, 46mm, 48mm, 50mm Case Dimensions: 318mm x 248mm x 51mm Weight: 6lbs

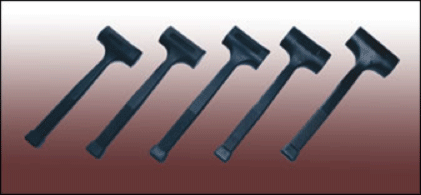

DEAD BLOW HAMMERS
Dead Blow Hammers Heavy shot-loaded head reduces rebound & impact. Soft face reduces marring and noise. Steel reinforced construction with no exposed metal. Tapered handles have textured pattern tor good grip. 100H01 - 1 lb. Soft Face Dead Blow Hammer 100H02 - 1.5 lb. Soft Face Dead Blow Hammer 100H03 - 2 lb. Soft Face Dead Blow Hammer 100H04 - 2.5 lb. Soft Face Dead Blow Hammer 100H05 - 3 lb. Soft Face Dead Blow Hammer

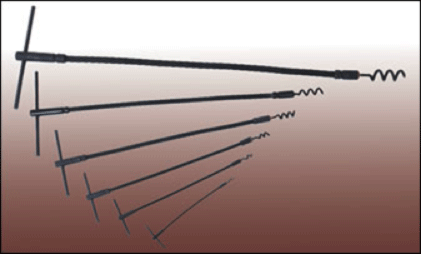

PACKING HOOKS
Packing Hooks The perfect labor saving tools for removing packings from stuffing boxes. Flexible design allows access around obstructions and in hard-to-get-at areas. Available in six convenient sizes to meet all requirements. Corkscrew bits made of specially tempered tool steel for strength and durability. Packing hooks 1, 2, and 3 have a removable tip.
